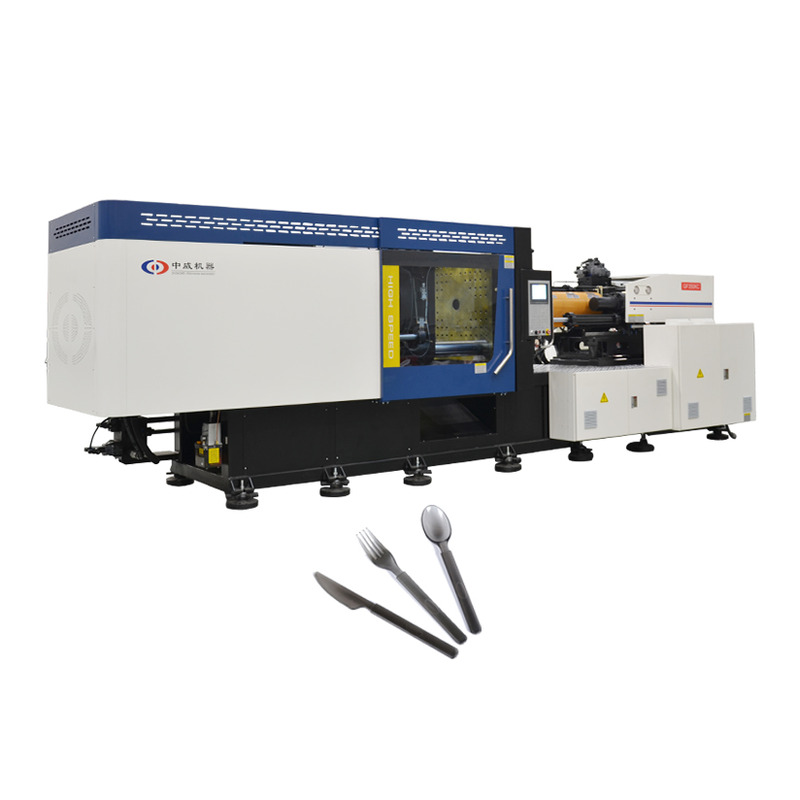

GF280KC Horizontal Plastic Fork Spoon Machine Plastic Spoon Making Machine

1 Set
MOQ
$13,000.00(1 - 1 Sets) $12,000.00(>=2 Sets)
가격
GF280KC Horizontal Plastic Fork Spoon Machine Plastic Spoon Making Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 575mm
Distance between Tie Bars(Height)(mm): 575mm
Mold Height(mm): 280 - 550 mm
Ejector Stroke(mm): 100 mm
Ejector Force(kN): 62 kN
Theoretical Shot Volume(cm³): 594 cm³
Injection Rate (g/s): 500 g/s
Machine Type: Hydraulic
Injection Weight (g): 427 g
Screw Speed (rpm): 1 - 280 rpm
Screw diameter (mm): 55 mm
Screw L/D Ratio: 24
Distance between Tie Bars: 575*575mm
Weight (KG): 11500
Type: Preform Injection
Place of Origin: Tianjin, China
Open Stroke(mm): 420 mm
Model Number: GF280KC
브랜드 이름: ZOWEI
Power (kW): 51 kW
Warranty: 1 Year
Key Selling Points: Stable performance
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: Viet Nam, Philippines, Indonesia, Thailand
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
Product name: Injection Molding Machine
Model: GF280KC
BRAND: ZOWEI
Function: plastic parts production
Application: Inserting Plastic Products
Motor: Servo Energy Saving
Machiner Dimensions(mm): 6200*2000*2500
Machine Color: white+blue
Advantage: energy saving
stable performance: short cycle time
After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Viet Nam, Philippines, Indonesia, Thailand, Malaysia
인증: ISO9001
기본 정보
Place of Origin: Tianjin, China
브랜드 이름: ZOWEI, ZOWEI
인증: ISO9001
Model Number: GF280KC, GF280KC
결제 및 배송 조건
Packaging Details: Every machine in a container Machine is well packed for long time shipping. Zowei can pack the machine according to customers' requirements.
Supply Ability: 200 Set/Sets per Month
제품 설명
Installation Instructions
ZOWEI GF 350CK high speed thin wall container injection molding machine is a specially designed machine model which is mainly for disposable lunch or fast food box, containers. It is with short cycle time to 5.6 seconds. GF350KC with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Technical Parameter
GF258KC
GF280KC
GF350KC
GF460KC
Screw Diameter
mm
55
55
55
60
Max. Shot Weight(PS)
g
400
400
420
643
Injection Pressure
Mpa
170
170.0
170.0
170.0
Clamping Force
KN
2600
2800
3500
5000
Opening Stroke
mm
480
420
650
650
Space Between Tie Bars（W*H）
mm
529X529
575X575
635X635
680X660
Max. Mold Height
mm
500
550
650
650
Min. Mold Height
mm
200
280
300
280
Hydaulic System Pressure
Mpa
17.5
17.5
17.5
17.5
Machine Dimensions(L*W*H)
m
5.8X1.7X1.8
6.5X2.0X1.85
6.6X2.0X2.0
6.9X2.1X2
weight
ton
8
11.5
15
16.5
Digital control system uses a dedicated controller, multiple CPU processing units, a multi-function automatic fault detection, alarm system, can verify 99 processing program molds, and has a remote control interface.
Infrared heating, fast temperature rise and good thermal insulation effect.Stable machine performance and high energy saving rate.
The tie rods are made of high quality structural alloy steel plated with hard chromium, with high mechanical strength and fatigue strength.
With double guide posts and dual-cylinder balance injection device, guarantees that balanced and uniform forces are applied on the screw during injection and moving forward.
High-precision electronic detection device, multi-level control of travel, speed and position, positioning accuracy.The safety door is equipped with a triple safety device of hydraulic, mechanical and electrical interlock.
Multi stages controlling of mold clamp pressure, speed and position.Mold thickness can be adjusted through ring gear which is driven by hydraulic oil motor.
Tianjin Zowei Precision Machinery Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling various types of high-precision, energy saving, stable performance injection molding machines in China and overseas.
Mission, meeting the needs of customers and promoting customer growth. Helping customers to obtain strong competitiveness and sustained profitability.
Vision, to develop injection molding machines for helping our society and our planet. Over the past 30 years in injection molding machines industry, Zowei won the trust from our professional customers. With its strong R&D, design and innovation capabilities, Zowei continues to provide customers with personalized machines that adapt to different products requirements.

Automatic feeding machine

Grinder

Blender

Drying hopper

Mechanical arm
