Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
460mm
Distance between Tie Bars(Height)(mm):
460mm
Plasticizing Capacity(g/s):
24.6
Mold Height(mm):
185 - 490 mm
Ejector Number:
5
Ejector Stroke(mm):
100 mm
Ejector Force(kN):
42 kN
Theoretical Shot Volume(cm³):
344 cm³
Injection Rate (g/s):
160 g/s
Machine Type:
Hydraulic
Injection Weight (g):
313 g
Screw Speed (rpm):
1 - 210 rpm
Screw diameter (mm):
45 mm
Screw L/D Ratio:
21
Distance between Tie Bars:
460X460mm
Weight (KG):
4000
Type:
Thermoplastics injection
Place of Origin:
Guangdong, China
Open Stroke(mm):
446 mm
Model Number:
GM2-LS160S
브랜드 이름:
LANSON
Power (kW):
16 kW
Warranty:
1 Year
Key Selling Points:
High Rigidity
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location:
Turkey, United States, Viet Nam, Malaysia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw
Product name:

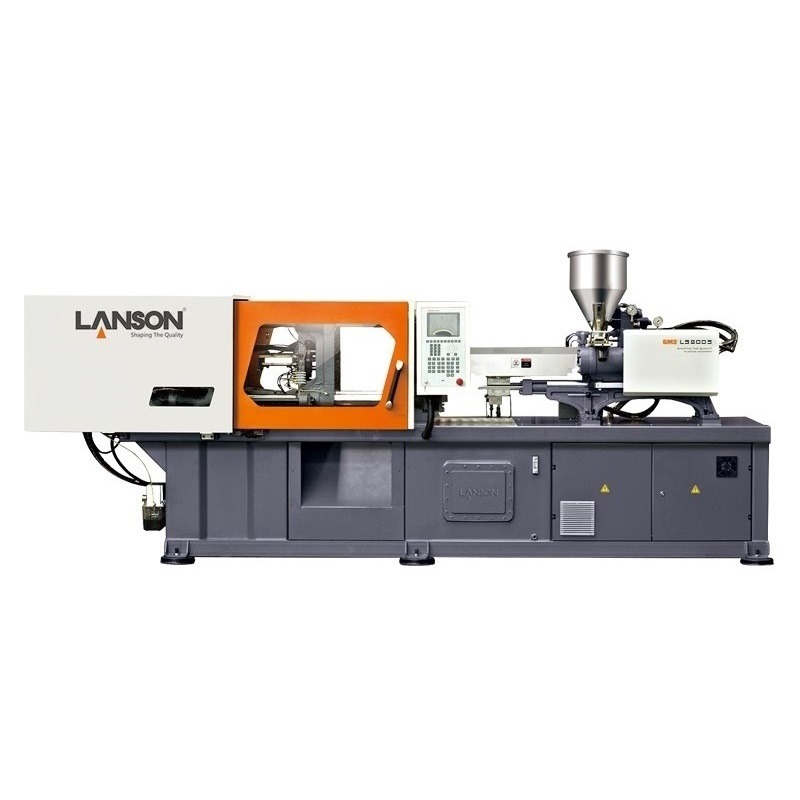

LANSON GM2-LS160S plastic injection moulding machine
Keyword:
plastic injection moulding machine 160 ton
Feature:
high rigidity, high strength, faster response and energy saving
Voltage:
380V/ 50Hz 3P+N+E (alterable)
After-sales Service:
Long life Technical service support on site or online
Prices:
Negotiable
Plastic Type:
Thermoplastic
Automatic:
yes
Clamping Force (kN):
1600
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Turkey, United States, Viet Nam, Malaysia
인증:
CE ISO9001
