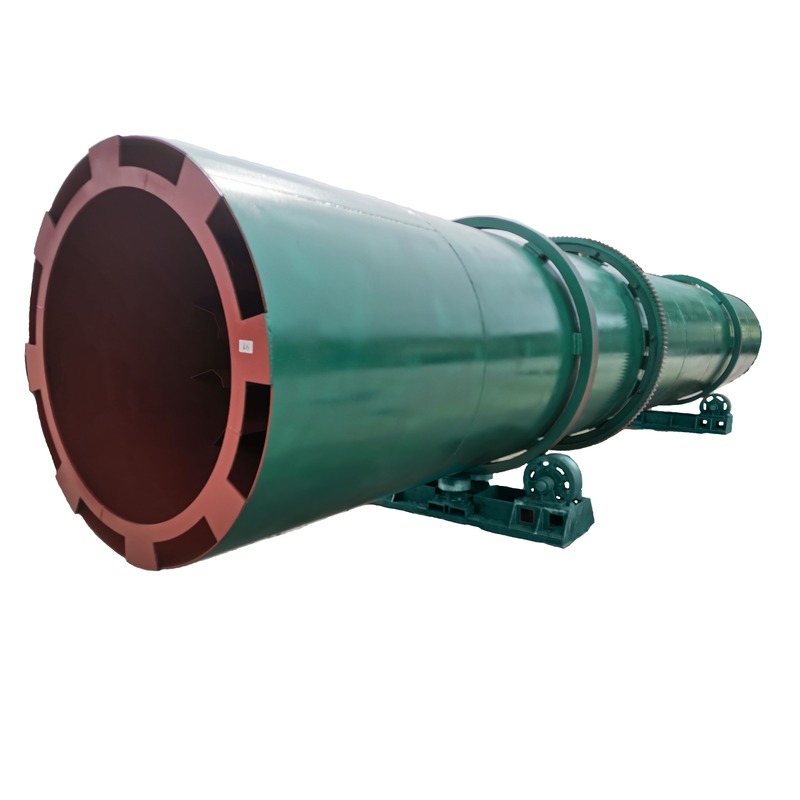

Rotary Drum Dryer for Fertilizer Granule Production Line
|
Model |
RDD-2 |
RDD-3 |
RDD-5 |
RDD-7 |
RDD-7A |
|
|
Capacity: t/h |
1-1.8 |
1.5-2.5 |
2.5-3.5 |
3.5-6 |
6-8 |
|
|
Temperature input required : |
200-300 °C |
|||||
|
1-1.5° |
1-1.5° |
1-1.5° |
1-1.5° |
1-1.5° |
||
|
Revolving speed (r/min) |
3-8 |
3-8 |
3-8 |
3-8 |
3-8 |
|
|
Size of Cyclone (m) |
1.3*1 *3.7 |
1.4*1 *3.7 |
1.4*1 *3.7 |
1.4 |
1.8*1.5*4.5 |
|
|
Size of fan (m) |
1.5*0.8*1.1 |
1.5*0.8*1.1 |
1.5*0.8*1.1 |
2*1.4*1.2 |
2*1.4*1.2 |
|
|
Diameter of pipeline (m) |
0.5 |
0.6 |
0.6 |
0.8 |
0.8 |
|
|
Power (dryer)(kW) |
7.5 |
15 |
15 |
22 |
30 |
|
|
Power (fan)(kW) |
15 |
15 |
22 |
30 |
45 |
|
|
Size L×W×H (m) |
13*1.5*1.8 |
15.5*1.8*2 |
18.5*2.2*2.2 |
Φ1.8×20 |
22*2.4*3.6 |
|
|
Weight(Kgs) |
8300 |
11300 |
13500 |
17500 |
18400 |
|
|
Voltage: V |
380 V -50 HZ- 3 phase (it can be changed under your need ) |
|||||
Construction
The whole system composed by the following :
Combustion chamber ( Build by customer ).
1.Rotary drum dryer body
2.Pipe
3.Induced fan
4.Sealing cover
5.Ring gear
6.Supporting base
7.Cyclone dust catcher
8.Motor & Reduction gear device
9.Lifting impeller
Rotary Drum Dryer adopts slightly tilted drum which can be rotated. The wet materials are sent to hopper of rotary drum by belt conveyor or bucket elevator from the higher side. Well-dried materials are collected from the other lower side, and then hot air enters the drum from the feeding side to the discharging side.
We will choose different packaging according to the different products.
